Room Air Conditioner Motor
產品品牌：聯嘉電氣
系列：120系列
款式：Room Air Conditioner Motor
型號：Room Air Conditioner Motor
服務熱線：13961291308
系列：120系列
款式：Room Air Conditioner Motor
型號：Room Air Conditioner Motor
服務熱線：13961291308
♦特別說明：產品圖片以及參數跟實際產品略有差異。
♦定制說明：一切規格按照客戶實際情況或考察后量身定制，支持非標定制。
♦庫存配送：有貨，全國送貨保障！
♦溫馨提示：本產品一經下單生產，非質量問題不支持退貨！
♦定制說明：一切規格按照客戶實際情況或考察后量身定制，支持非標定制。
♦庫存配送：有貨，全國送貨保障！
♦溫馨提示：本產品一經下單生產，非質量問題不支持退貨！
產品描述

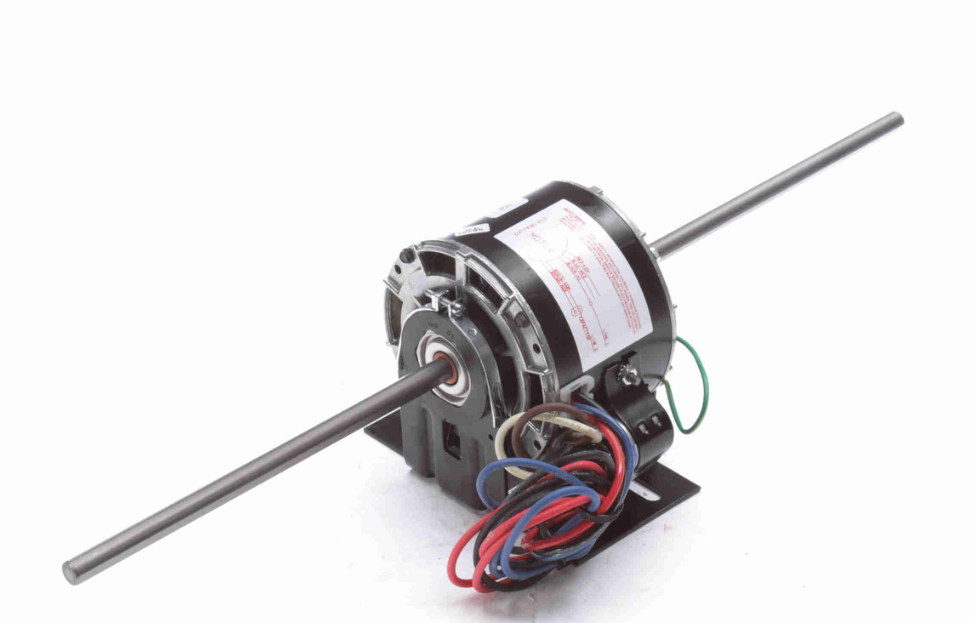

Fan Coil - Dual Wheel Blower Motor
5" Diameter - 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Semi-Enclosed Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2" Diameter Double Shaft with Flat
31" Leads with Quick Connect Terminals
Resilient Base
| 1 -Speed | ||||||
| PSC Air Conditioner AC Motors 1 -Speed, sorted by HP, custom | ||||||
| HP | Nameplate RPM | Voltage | Motor Shaft Rotation | Shaft Dia. | Shaft Length | Motor Mounting Type |
| 1/10 | 1,500 | 208-230V AC | CCWLE | 1/2 in | 9-51/64 in | Cradle Base |
| 2 -Speed | ||||||
| PSC Air Conditioner AC Motors 2 -Speed, sorted by HP, custom | ||||||
| HP | Nameplate RPM | Voltage | Motor Shaft Rotation | Shaft Dia. | Shaft Length | Motor Mounting Type |
| 1/4 | 1,075 | 115V AC | CCWLE | 1/2 in | 7-1/2 in | Cradle Base |
| 1/4 | 1,625 | 115V AC | CCWLE | 1/2 in | 7-1/2 in | Cradle Base |
| 1/4 | 1,625 | 208-230V AC | CCWLE | 1/2 in | 7-11/16 in | Ring |
| 1/4 | 1,625 | 230V AC | CCWLE | 1/2 in | 7-1/2 in | Cradle Base |
| 1/6 | 1,625 | 115V AC | CW/CCW | 1/2 in | 7-1/2 in | Cradle Base |
| 3 -Speed | ||||||
| PSC Air Conditioner AC Motors 3 -Speed, sorted by HP, custom | ||||||
| HP | Nameplate RPM | Voltage | Motor Shaft Rotation | Shaft Dia. | Shaft Length | Motor Mounting Type |
| 1/2 | 1,075 | 115V AC | CCWLE | 1/2 in | 7-25/64 in | Ring/Stud |
| 1/2 | 1,075 | 208-230V AC | CCWLE | 1/2 in | 7-19/32 in | Ring/Stud |
| 1/2 | 1,625 | 115V AC | CCWLE | 1/2 in | 7-19/32 in | Ring/Stud |
| 1/2 | 1,625 | 208-230V AC | CCWLE | 1/2 in | 7-19/32 in | Ring/Stud |
| 1/3 | 1,075 | 115V AC | CCWLE | 1/2 in | 7-57/64 in | Ring/Stud |
| 1/3 | 1,075 | 208-230V AC | CCWLE | 1/2 in | 8-3/16 in | Ring/Stud |
| 1/3 | 1,625 | 115V AC | CCWLE | 1/2 in | 7-25/64 in | Ring/Stud |
| 1/3 | 1,625 | 208-230V AC | CCWLE | 1/2 in | 7-25/64 in | Ring/Stud |
| 1/4 | 1,075 | 115V AC | CCWLE | 1/2 in | 9-7/8 in | Ring/Stud |
| 1/4 | 1,075 | 208-230V AC | CCWLE | 1/2 in | 7-57/64 in | Ring/Stud |
| 1/4 | 1,625 | 115V AC | CCWLE | 1/2 in | 7-19/32 in | Ring/Stud |
| 1/4 | 1,625 | 208-230V AC | CCWLE | 1/2 in | 7-5/8 in | Ring/Stud |
| 1/6 | 1,075 | 115V AC | CCWLE | 1/2 in | 7-1/2 in | Cradle Base |
| 1/6 | 1,075 | 115V AC | CCWLE | 1/2 in | 8-3/32 in | Ring/Stud |
| 1/6 | 1,075 | 208-230V AC | CCWLE | 1/2 in | 8-19/64 in | Ring/Stud |
| 1/6 | 1,075 | 115V AC | CCWLE | 1/2 in | 8-19/64 in | Ring/Stud |
| 1/8 | 1,075 | 115V AC | CCWLE | 1/2 in | 9-13/16 in | Cradle Base |
| 1/8 | 1,500 | 115V AC | CCWLE | 3/8 in | 8-25/64 in | Stud |
| 1/10 | 1,550 | 115V AC | CW/CCW | 3/8 in | 6-3/4 in | Stud |
| 1/10 | 1,550 | 115V AC | CW/CCW | 1/2 in | 6-3/4 in | Ring/Stud |
| 1/15 | 1,075 | 115V AC | CCWLE | 1/2 in | 5-57/64 in | Ring |
| 3/4 | 1,075 | 208-230V AC | CCWLE | 1/2 in | 7-25/64 in | Ring/Stud |
| 1/10, 1/12, 1/15 | 1,625 | 115V AC | CCWLE | 1/2 in | 9-5/16 in | Cradle Base |
| 1/5, 1/8, 1/10 | 1,625 | 208-230V AC | CCWLE | 1/2 in | 9-3/16 in | Cradle Base |
| 1/6, 1/12, 1/20 | 1,500 | 115V AC | CWLE | 1/2 in | 10-1/2 in | Cradle Base |
| 1/8, 1/12, 1/14 | 1,075 | 277V AC | CCWLE | 1/2 in | 8-1/2 in | Ring |
| 1/8, 1/20, 1/30 | 1,500 | 115V AC | CCWLE | 1/2 in | 9-51/64 in | Cradle Base |
| 4 -Speed | ||||||
| PSC Air Conditioner AC Motors 4 -Speed, sorted by Voltage, ascending | ||||||
| HP | Nameplate RPM | Voltage | Motor Shaft Rotation | Shaft Dia. | Shaft Length | Motor Mounting Type |
| 1/2 | 1,075 | 115V AC | CW/CCW | 1/2 in | 8-1/2 in | Cradle Base |
| 1/4 | 1,625 | 115V AC | CW/CCW | 1/2 in | 8-1/2 in | Cradle Base |
| 1/6 | 1,550 | 115V AC | CW/CCW | 1/2 in | 6-3/4 in | Ring/Stud |
| 1/6 | 1,625 | 115V AC | CW/CCW | 1/2 in | 10 in | Cradle Base |
| 1/8 | 1,550 | 115V AC | CW/CCW | 1/2 in | 6-3/4 in | Ring/Stud |
| 1/10 | 1,050 | 115V AC | CW/CCW | 3/8 in | 10-1/2 in | Cradle Base |
| 1/10 | 1,075 | 115V AC | CW/CCW | 1/2 in | 10 in | Cradle Base |
| 1/15 | 1,050 | 115V AC | CW/CCW | 1/2 in | 10-1/2 in | Cradle Base |
| 1/20 | 1,075 | 115V AC | CW/CCW | 1/2 in | 10-1/16 in | Cradle Base |
| 1/10, 1/12, 1/15, 1/20 | 1,075 | 115V AC | CCWLE | 1/2 in | 9-5/16 in | Cradle Base |
| 1/15, 1/20, 1/25, 1/35 | 1,075 | 115V AC | CCWLE | 1/2 in | 11 in | Cradle Base |
| 1/6, 1/8, 1/10, 1/15 | 1,625 | 115V AC | CCWLE | 1/2 in | 9-51/64 in | Cradle Base |
| 1/6, 1/8, 1/10, 1/12 | 1,550 | 120V AC | CCWLE | 1/2 in | 8-1/8 in | Ring |
| 1/10, 1/15, 1/20, 1/25 | 1,075 | 208-230V AC | CCWLE | 1/2 in | 9-5/16 in | Cradle Base |
| 1/8 | 1,075 | 277V AC | CW/CCW | 1/2 in | 8-1/2 in | Cradle Base |
| 1/10 | 1,050 | 277V AC | CW/CCW | 1/2 in | 8-1/2 in | Ring |
