系列:160系列
款式:
型號:YDK140-370-6A
服務熱線:13961291308
♦定制說明:一切規格按照客戶實際情況或考察后量身定制,支持非標定制。
♦庫存配送:有貨,全國送貨保障!
♦溫馨提示:本產品一經下單生產,非質量問題不支持退貨!
產品描述
產品描述
使用領域:空氣源熱泵,軸流風機;
電源:100-120V/60Hz, 208- 240V/50/60Hz, 4/6/8 極,輸出功率50-750W;
使用NSK、TPI等進口低噪音滾球軸承;
電機優化設計,具有低噪音、高效率、長壽命等特點;
過熱、過流保護,堵轉保護,更安全;
卷板結構,特殊工藝,結構更合理,運行更加平穩;
獨特設計的多重防水、防銹性能,滿足各種使用環境
Product application: Air source heat pump, Axial flow fan;
Technical parameters: 10 0- 120 V/6 0 Hz,208-240 V/50/60 Hz, 4/6/8P;
Output Power: 50-750W;
Use NSK,TPI import low noise ball bearing;
Design optimization of electrical machine, low noise, high efficiency long life, etc.;
Overheating, over-current and rotation-clogging protection, more secure;
Rolled plate structure, special process, more reasonable structure, running more smoothly;
Unique design of multiple waterproofing, anti-rust, adaptive to different working conditions.
基本參數 Nominal Data
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

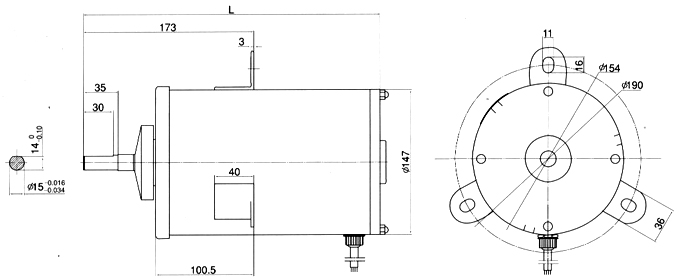

外形尺寸/OUTLINE DIMENSSIONS
