系列：160系列
款式：FAN AND BLOWER

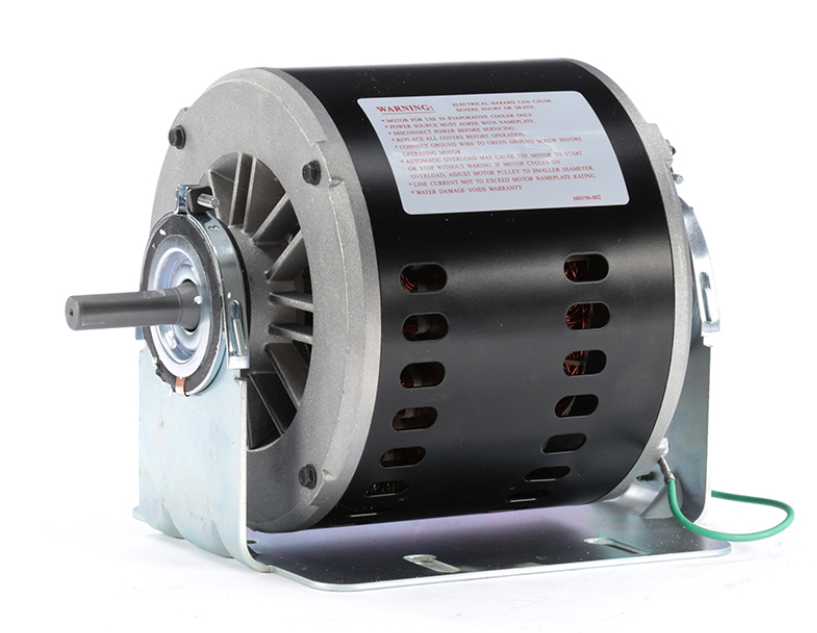

型號：Three Phase FAN AND BLOWER
服務熱線：13961291308
♦定制說明：一切規格按照客戶實際情況或考察后量身定制，支持非標定制。
♦庫存配送：有貨，全國送貨保障！
♦溫馨提示：本產品一經下單生產，非質量問題不支持退貨！
產品描述
Features
? Ball bearings
? Optional extended clamp bolts
? Optional automatic thermal protection
? Selected EPAct (★) designs available
Applications
Designed for applications like commercial fans and blowers, direct and belt drive air handlers and exhaust fans
A Cat.
HP RPM Spds Volts Base Rotation @ NP
1/2 1140 1 208-230/460 NB CCW/CW 2.1-2.4/1.2
3/4 1140 1 208-230/460 NB CCW/CW 3.0-3.4/1.7
1 1140 1 208-230/460 WB CCW/CW 4.2-4.0/2.0
1140 1 208-230/460 NB CCW/CW 4.2-4.0/2.0
850 1 208-230/460 NB CCW/CW 5.1-5.2/2.6
1.5 1140 1 208-230/460 WB CCW/CW 5.1-5.0/2.5
1140 1 208-230/460 NB CCW/CW 5.1-5.0/2.5
